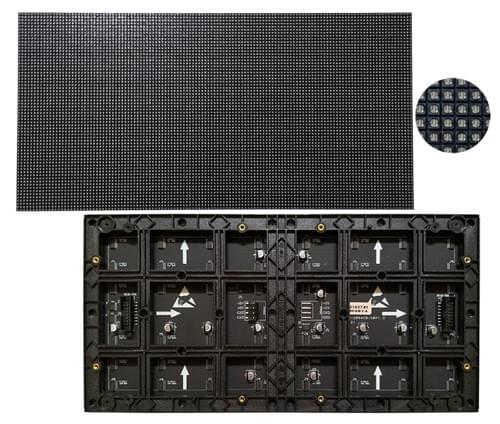

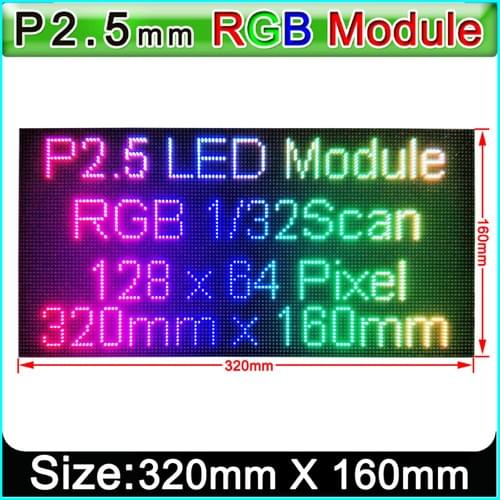

PH2.5 Indoor high definition LED display module:

Model No.P2.5

Pixel Pitch: 2.5mm

Module Size: 320*160mm

Pixel Density: 160000

Pixel composition: 1R1G1B

Module Resolution(Pixel): 128*64 dots

The Optimum Viewing Distance: 2~20m

The Optimum Viewing Angle: H:120°  V:120°

Maximum PowerConsumption: 580W/m2

Driving Method: 1/32 Scan

Frame Frequency: ≥60Hz

Refresh Rate: ≥180Hz

White Balance Luminance(CDm2): ≥800CD/m2

Operating Environment Temperature: between -20°C and 60°C

Operating Voltage: DC 5V

Input Signal: RF,S-Video,RSBHV,YUV,YC,COMPOSITION

Average No Failure: ≥1000 hours

Time Life-span: >100000 hours

Out-of Control rate: <0.0002

Products function introductions:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 120 degree at horizontal line, 160 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
Products application area:
1) Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment, meeting room
