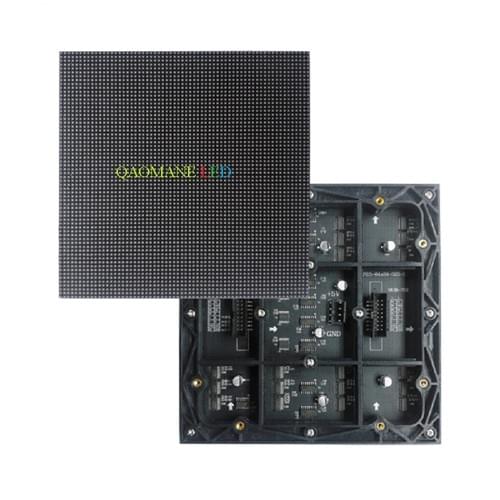

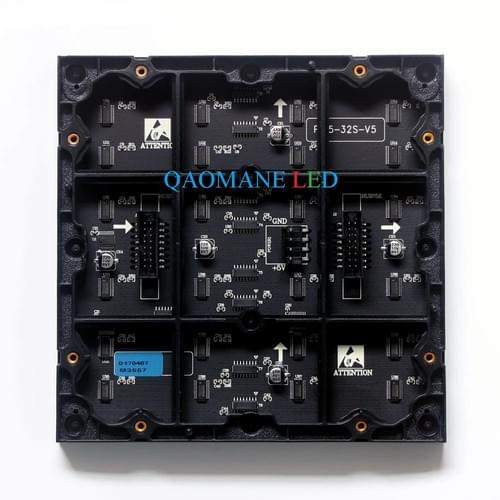

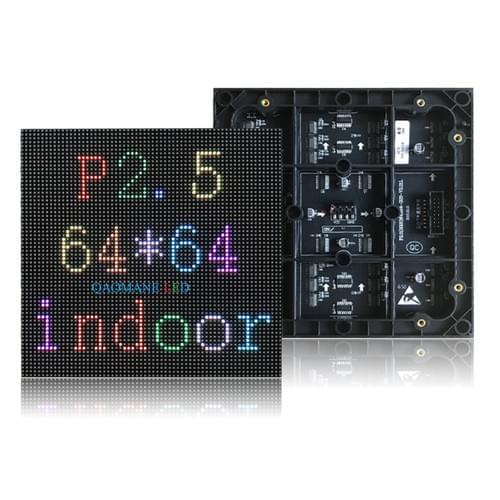

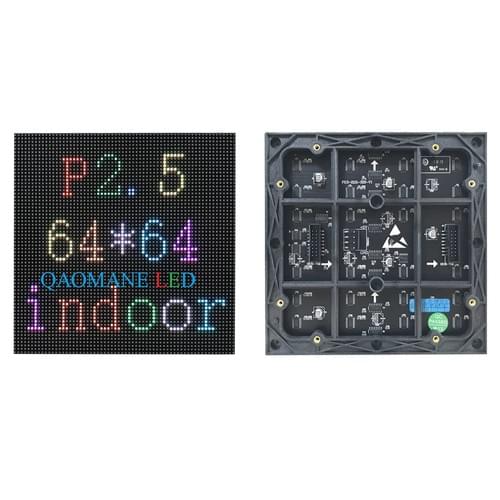

SMD PH2.5 Indoor high definition LED display module,RGB Indoor full color LED module

Package include:
1x P2.5 160x160mm led panel
1x Power Cable
1x Pin Cable

PH2.5 Indoor high definition LED display module:
Model No.    P2.5
Pixel Pitch    2.5mm
Module Size    160*160mm
Pixel Density    160000
Pixel composition    1R1G1B
Module Resolution    64*64
The Optimum Viewing Distance    2~12m
The Optimum Viewing Angle    H:120°  V:120°
Maximum Power Consumption    580W/m2
Driving Method    1/32 Scan
Frame Frequency    ≥60Hz
Refresh Rate    ≥180Hz
White Balance Luminance(CDm2)    ≥800CD/m2
Operating Environment Temperature    between -20°C and 60°C
Operating Voltage    DC 5V
Input Signal     RF,S-Video,RSBHV,YUV,YC,COMPOSITION
Average No Failure    ≥1000 hours
Time Life-span    >100000 hours
Out-of Control rate    <0.0002


Products function introductions:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 120 degree at horizontal line, 160 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
Products application area:
1) Full color LED display : Equally or compactly make the red, green, blue color in one dot, equally distribute at the panel, so make the whole display
2) Usually apply for physical sports, advertisement, bank, stock exchange, station, port, marketplace, telecommunication, department, school, monitor, restaurant, entertainment, meeting room
